The Burger 180' Motor Yacht

The Burger 180’ Motor Yacht, currently under construction and available for sale, is an exceptional opportunity to purchase an exciting example of Burger’s creativity. Powered by twin Caterpillar 3512C IMO Tier II engines, she has a range of 4,000 nautical miles at 12 knots without the need for the costly SCR’s required on Tier III engines. In addition, the Burger 180’ Motor Yacht features spaces that are typically found on much larger yachts including:

  • Garage housing a 37’ Tender
  • Anchor Handling Deck keeping the anchor handling gear situated below the foredeck

The Burger 180’ Motor Yacht provides her new owner the ideal opportunity to customize her to their liking without the extended engineering duration typical of a yacht of this size.

Designed with entertainment, technological advances, reliability, and worldwide cruising with family and friends in mind, the Burger 180’ Motor Yacht offers many mechanical firsts in yachting. Her electrical generation system has been developed to ensure adequate power in all situations. With nine (9) Kohler 40kW generators installed in parallel, the Burger 180’ Motor Yacht's power generation system offers maximum efficiency and redundancy while ensuring that no generator ever runs underloaded. To provide maximum comfort at sea, the Burger 180’ Motor Yacht incorporates Naiad Dynamics Four Fin, Zero Speed Stabilization System

The tender garage provides the opportunity to stow up to a 37’ tender which is launched via a hydraulic “stinger” system. With this system, the Burger 180’ Motor Yacht's tender is safely stowed, and the need for towing, and its associated hazards, eliminated.

Specifications

LOA: 180' 00" (54.86m)

Beam (Maximum): 32' 08" (9.98m) Over the wing stations

Beam (Over Guards): 30’07” (9.31m)

Draft (Full Load): 7' 10" (2.39m)

Draft (Half Load): 7’-06” (2.31m)

Half Load Displacement: 433 LT (440 MT)

Usable Gross Tonnage: 720 GT ITC

Admeasured Gross Tonnage: 499 GT ITC

Main Engines: Caterpillar 3512C IMO Teir II developing 2,366 BHP

Generators: Nine (9) Kohler 40kW Marine Generator Sets

Cruise Speed: 14 knots (Approx.)

Long Range Cruise: 11 knots

Range at Long Range Cruise: 4,000 NM @ 11 knots (Approx.)

Fuel Capacity: 21,200 U.S. Gal. (80,300 l) (Approx.)

Fresh Water: 3,075 U.S. Gal. (11,640 l) (Approx.)

Tech Water Capacity: 2,260 U.S. Gal. (10,080 l) (Approx.)

Clean Oil Capacity: 460 U.S. Gal. (1,745 l) (Approx.)

Waste Oil Capacity: 400 U.S. Gal. (1,530 l) (Approx.)

Black Water Holding Capacity: 1,075 U.S. Gal. (4,070 l) (Approx.)

Grey Water Holding Capacity: 3050 U.S. Gal. (11,550 l) (Approx.)

Exterior Deck Area: 4,680 sq ft (435 m²)

Interior Area: 4,875 sq ft (453 m²)

Naval Architects: Burger Design Team/Gregory C. Marshall Naval Architects

Built for Luxury

The Burger 180’ Motor Yacht's layout is a result of the Burger team working closely with the talented group at Gregory C. Marshall Naval Architects and features expansive interior and exteriors spaces for her owner and guests.

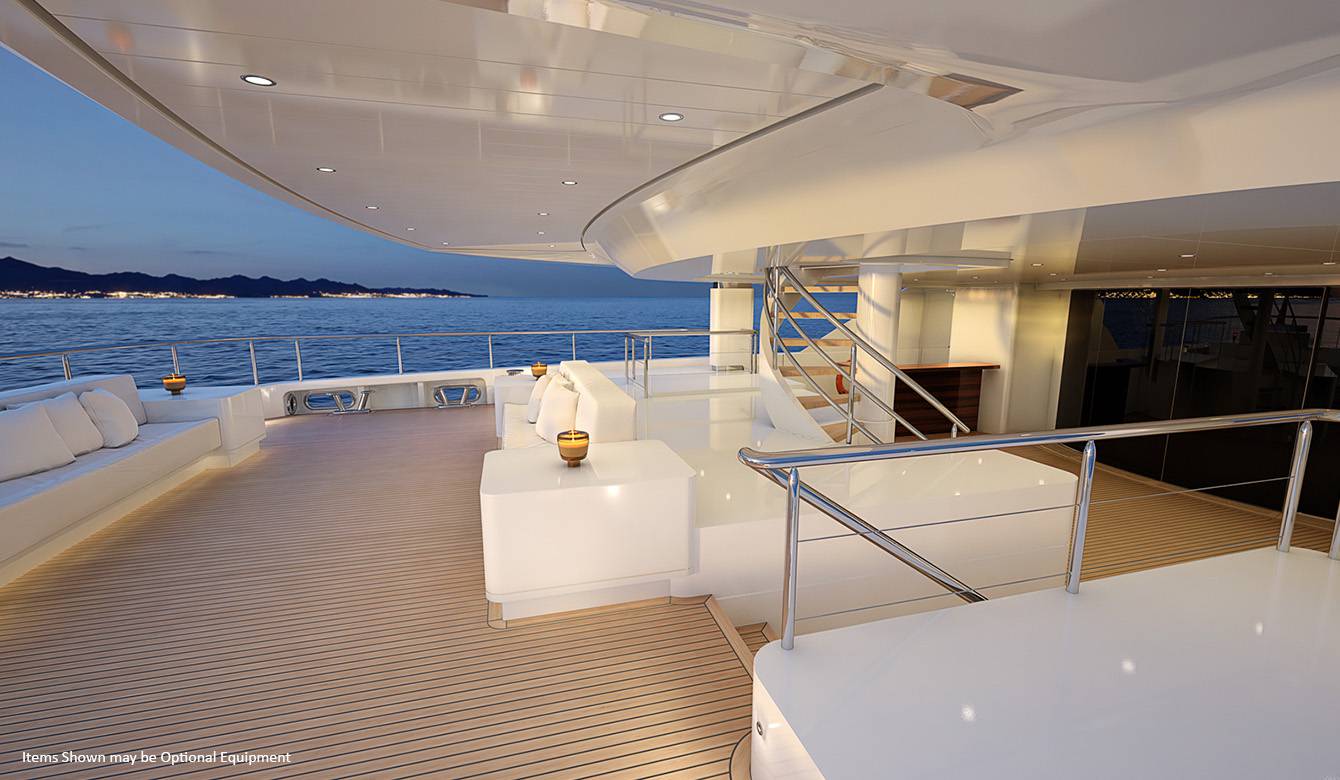

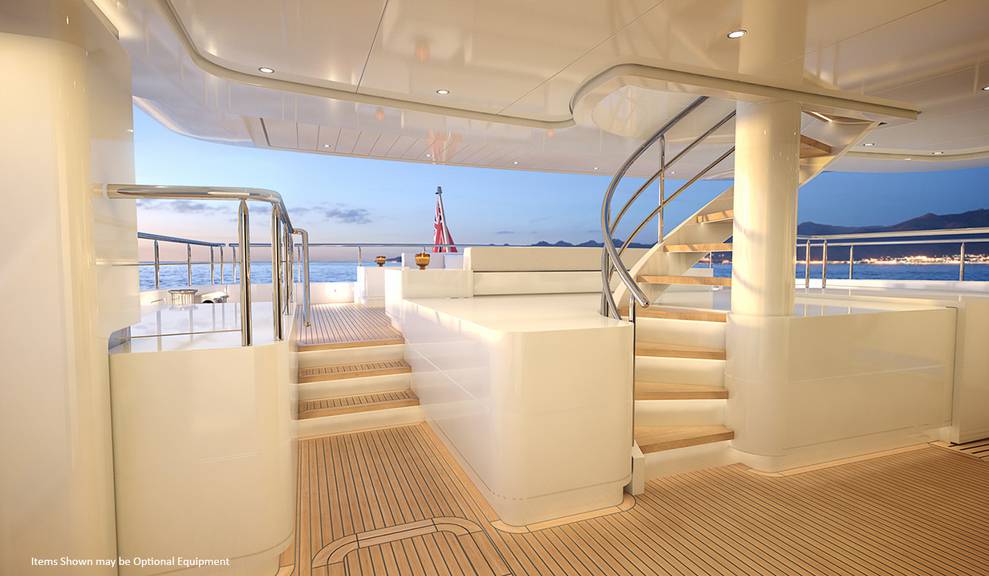

Boarding the yacht from the stern mounted passarelle, guests are greeted on her expansive aft deck. This area also provides direct access to the Main Salon, Tender Bay, and via a circular stairway on centerline, the aft Bridge Deck. Easy access to the swim platform is provided alongside the Tender Bay.

The Main Salon is an open area for more formal entertaining and dining experiences. Large windows provide a feeling of openness while enjoying time with your friends and family. A large handicap accessible elevator is provided to allow guests easy access to all four decks.

Forward on the main deck, the Burger 180’ Motor Yacht features a full beam owner’s suite with an adjoining and spacious private office. Guest accommodations for up to ten (10) guests in four (4) staterooms, all with very large windows to bring in natural light and scenic views, are situated on the lower deck. These staterooms are easily converted into two family suites. The guest spaces are serviced via discrete access from the crew laundry. Consideration for handicap accessibility has been incorporated throughout the yacht.

The Skylounge offers a large bar and entertainment area for relaxation with friends and family and opens to the aft Bridge Deck which is an exceptional area for outdoor dining, entertaining, or relaxation. Forward on the Bridge Deck is the Pilothouse, Yacht’s Office, and Captain’s Stateroom. For those who wish to watch the action while outdoors, the Burger 180’ Motor Yacht features a large circular seating area forward of the Pilothouse.

The expansive Sundeck is almost 75 feet long and offers many areas for outdoor enjoyment.

Her professional galley is designed for the most demanding needs and long-range cruising. The galley features commercial equipment as well as direct access to the skylounge service pantry, large walk-in refrigerator, walk-in freezer, and walk-in pantry. The crew has easy access to their accommodations without disturbing the chef.

The crew accommodations, while accommodating up to 13, is designed to provide private staterooms for the yacht’s Captain (Queen berth on the Bridge Deck), and single berths for the Chief Engineer, Chef, and Chief Stewardess. In addition, a large lounge and relaxation area with large windows to provide natural light, is provided.
